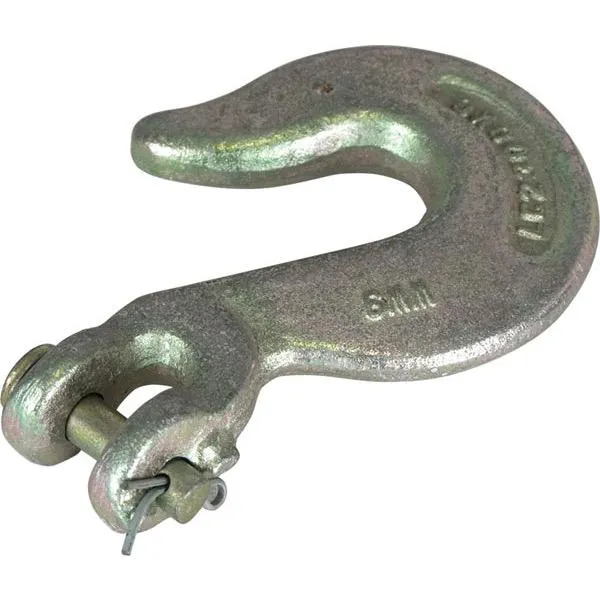

Manufactured from dropped forged steel quenched and tempered and gold zinc plated.

Key: LC = Load Capacity

Other Details:

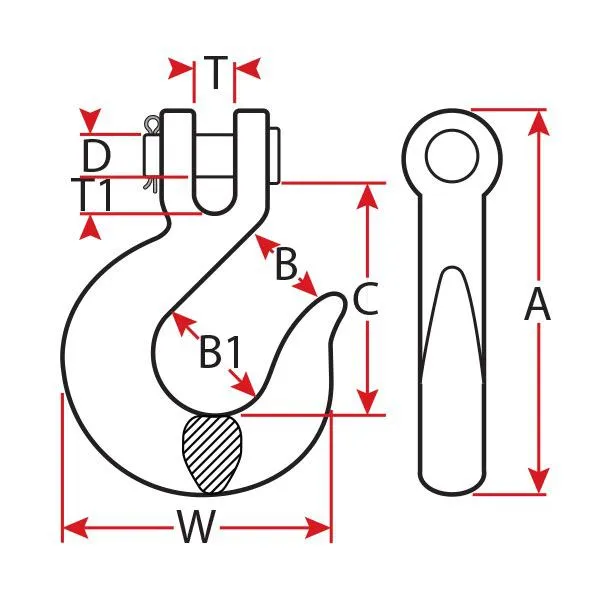

Part No.	Size (mm)	L.C (kg)	Wt (kg)	A (mm)	B (mm)	B1 (mm)	C (mm)	D (mm)	T (mm)	T1 (mm)	W (mm)
120026	6.0	2000	0.22	102	24	30	66	7.8	11	11.4	70
120028	8.0	3800	0.33	114	27	32	74	9.9	13	13.4	75
120030	10.0	6000	0.5	132	33	38	85	12	15	15.5	88
120032	13.0	9000	1.23	166	43	49	103	16	19	19.6	123
